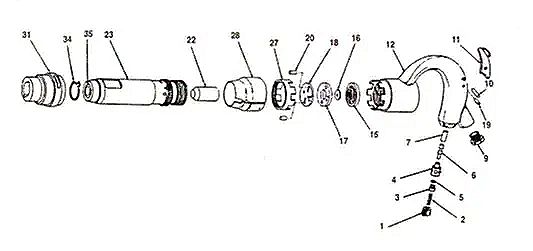

Goose-Neck or Open Handle Style Chipping Hammer

USE 90 PSI MAXIMUM

REF#     Part#                 DESCRIPTION

1            23401N3           Plug

2            23402N3           Spring

3            23403N3           Throttle Valve

4            23404N3           Throttle Valve Bushing

5            23405N3           O-Ring

6            23406N3           Push Pin

7            23407N3           Push Pin Bushing

9            23409N3           Air Inlet

10          23410N3           Throttle Lever Pin

11          23411N3            Throttle Lever

12          23412N3            Complete Handle (includes Parts # 1,2,3,4,5,6,7,9,10,11,12,19)

15          23415N3           Upper Valve Case

16          23416N3           Disc Valve

17          23417N3           Lower Valve

18          23418N3           Case

19          23419N3           Locator Pin

20          23420N3           Locator Pin

22          222N3               Piston for #2

              322N3               Piston for #3

              422N3               Piston for #4

23          223N3               Cylinder for #2

              323N3               Cylinder for #3

              423N3               Cylinder for #4

27          23427N3           Lock

28          23428N3           Shield Lock

31          23431N3           Sleeve Retainer

34          23434N3           Spring Lock Coil

35          23435N3           Bushing (ROUND)

              2344B17H         Bushing (HEX)

Optional

             T-7516                Quick Change Retainer

             23450                 Swivel Connector 7/8-24

             23451                 Swivel Connector 3/8" NPT
