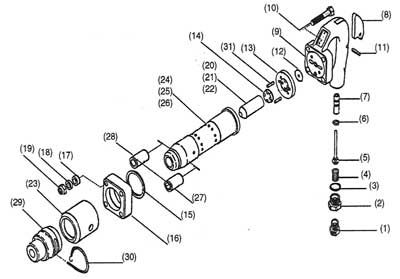

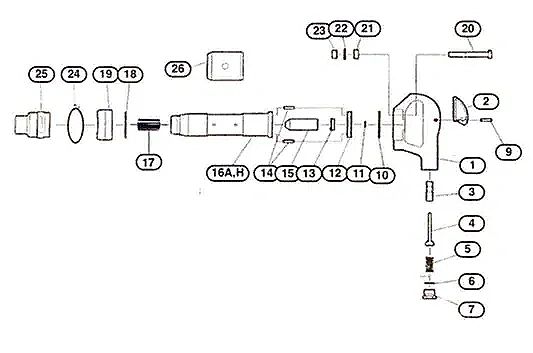

4-Bolt or Closed Handle Chipping Hammer

Ref #   Item #            Description

1          2344B01A      Handle Assembly (Parts 1 - 9)

2          2344B02M     Trigger (Metal) for 4B Hammers

3          2344B03        Throttle Valve Stem Bushing

4          2344B04        Throttle Valve

5          2344B05        Throttle Valve Spring

6          2344B06        Inlet Bushing O-Ring

7          2344B07        Air Inlet Bushing 3/8"

9          2344B09        Throttle Lever Pin

10        2344B10        Cylinder O-ring

11        2344B11        Disc Valve 4B Hammers

12        2344B12        Valve Seat

13        2344B13        Valve Seat Bumper

14       2344B14         Dowel Pins (2 per tool)

15        24B15            2" Piston

15        34B15            3" Piston

15        44B15            4" Piston

16A      24B16A          2" Stroke Cylinder (Barrel)

16A      34B16A          3" Stroke Cylinder (Barrel)

16A      44B16A          4" Stroke Cylinder (Barrel)

17        2344B17        Round Bushing

17        2344B17H     Hex Bushing

18        2344B18        Absorber Ring

19        2344B19        Cylinder Flange

20        2344B20        Handle Bolts (4 per tool)

21        2344B21        Vibration Spacer

22        2344B22        Washer

23        2344B23        Nylon Handle Bolt Nut

24        2343N3         Spring Lock Coil (KSI 192-2-N)

25        23431N3       Standard Retainer T-2, T-3, T-4

26        234B26          Exhaust Deflector (#2 & #3)

26        44B26            Exhaust Deflector (#4)

            23450            Swivel Connector 7/8"

            23451            Swivel Connector 3/8"

            T-7516           Quick Change Retainer
